Cement plant air filtration dust collector cyclone filter Product Description Cyclonic separation is a method of removing particulates from an air, gas stream, without the use of filters, through vortex separation. Rotational effects and gravity are used to separate mixtures of solids and fluids.
A high speed rotating (air)flow is established within a cylindrical or conical container called a cyclone. Air flows in a helical pattern, beginning at the top (wide end) of the cyclone and ending at the bottom (narrow) end before exiting the cyclone in a straight stream through the center of the cyclone and out the top.
Larger particles in the rotating stream have too much inertia to follow the tight curve of the stream, and strike the outside wall, then fall to the bottom of the cyclone where they can be removed.
The cyclone geometry, together with flow rate, defines the cut point of the cyclone. This is the size of particle that will be removed from the stream with a 50% efficiency. Particles larger than the cut point will be removed with a greater efficiency, and smaller particles with a lower efficiency.

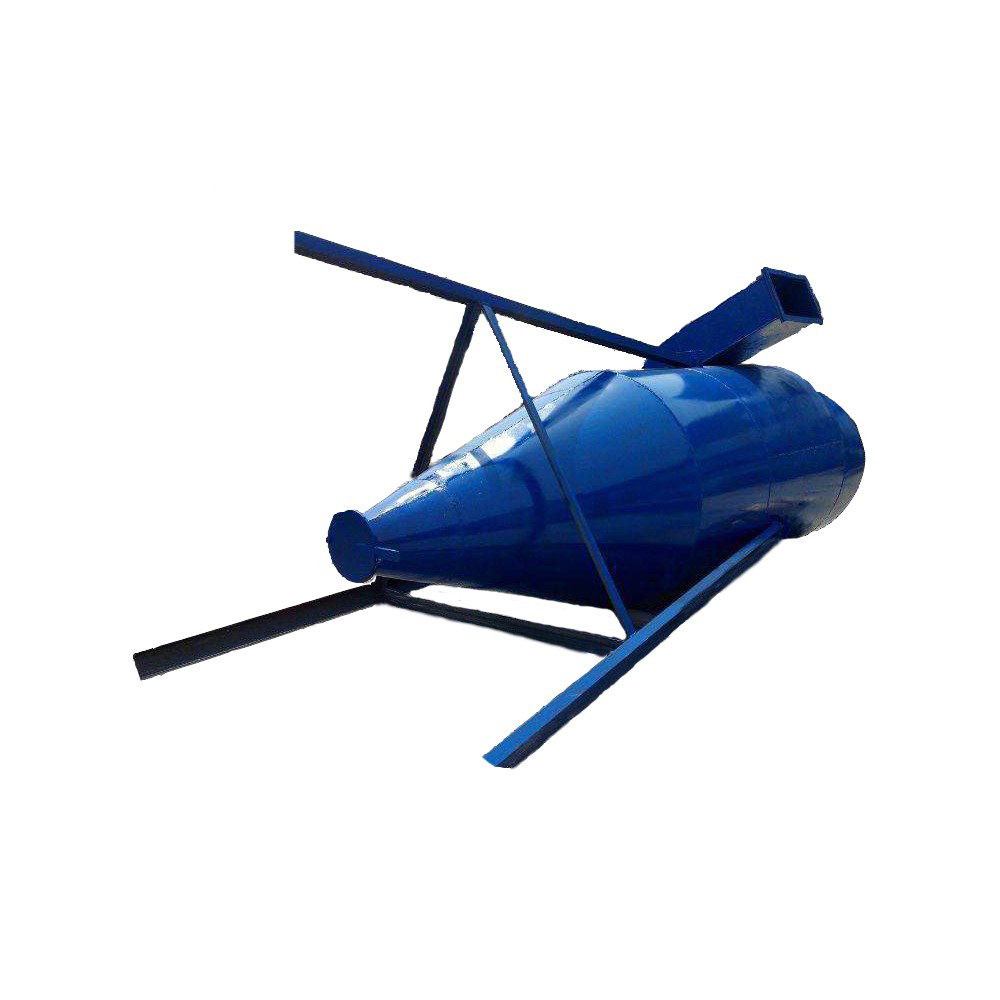

Cyclone Dust Collector is suitable for catching dry, nonfibrous particular dust, its features are as following: Turbination shape Installed with cone reflecting screen can stop the dust being raised again The collection efficiency is increased by a lot Application: Large scale cyclones are used in sawmills to remove sawdust from extracted air. Cyclones are also used in oil refineries to separate oils and gases, and in the cement industry as components of kiln preheaters. Smaller cyclones are used to separate airborne particles for analysis. This kind of cyclone collector is used in the following industry: Metallurgy Foundry Industry Building Material Industry Chemical Industry Food Industry Cement Industry Catching the dry nonfibrous particals, dust & fume.
Can be used as recovering equipment.
Looking for ideal Cement Industry Dust Collector
Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Cyclone Dust Collector in Cement Plant are quality guaranteed. We are China Origin Factory of Air Filter Cyclone Dust Collector. If you have any question, please feel free to contact us.
Product Categories : Cyclone Dust Collector Series
