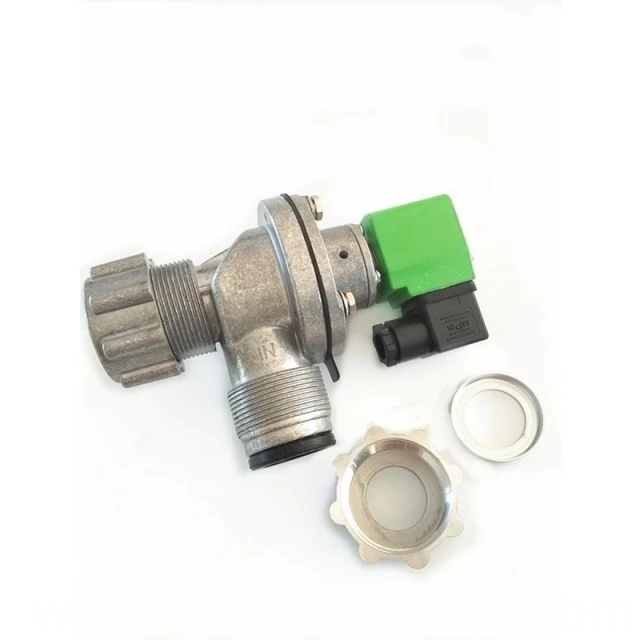

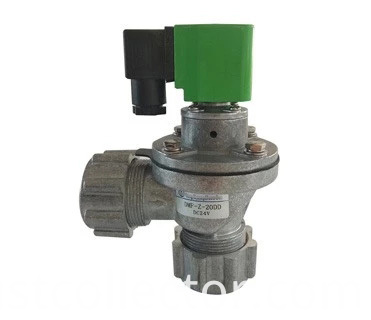

Right angle solenoid solenoid diaphragm valve 24V

    Payment Type: L/C
    Incoterm: FOB,CIF
    Delivery Time: 15 Days
Basic Info

Model No.: Customized

Additional Info

Packaging: carton

Transportation: Ocean,Land

Port: Xingang China

Product Description

Analysis of common problem using stage failure phenomenon

Elimination method
Installation and debugging
All valves can not be opened but the pilot part has action
Check whether the pressure of the gas package is too low
Air leakage
Some valves do not work and other valves are normal
Check valve line connection and coil
Replacement parts
All valves can not be closed and air leakage pressure can not be established.
The air inlet of the valve is installed on the opposite side of the nozzle

Diaphragm controlled pneumatic solenoid valve


Some valves are unable to shut off air leakage
There are impurities adsorbed on the diaphragm and the moving iron core is stuck.
Clean diaphragm and check diaphragm check whether moving iron core and gas plug completely.
Slow closure of the valve
Diaphragm throttling Kong Shoudu
Dredge the throttle hole of the diaphragm
In the process of use
Some valve leakage diaphragm undead valve often open
If the impurity is adsorbed on the diaphragm, the leading damage core will be stuck.

Clean the diaphragm, check the diaphragm, check the moving core and gas plug, and replace the parts in time.

Aluminum alloy solenoid valve

Coil heat burn down
Long time electricity
Check the working condition of the control system
There is a voltage but the valve does not move
The diaphragm is damaged or throttle Kong Shoudu
Replacement parts in time
Low ambient temperature, air leakage or inability to open the valve
Ice phenomenon in low ambient temperature valve
Pay attention to heat preservation

Looking for ideal Dust Collector Fittings Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Cement Dust Removal Pulse Valve are quality guaranteed. We are China Origin Factory of Industrial Bag Type Pulse Valve. If you have any question, please feel free to contact us.
