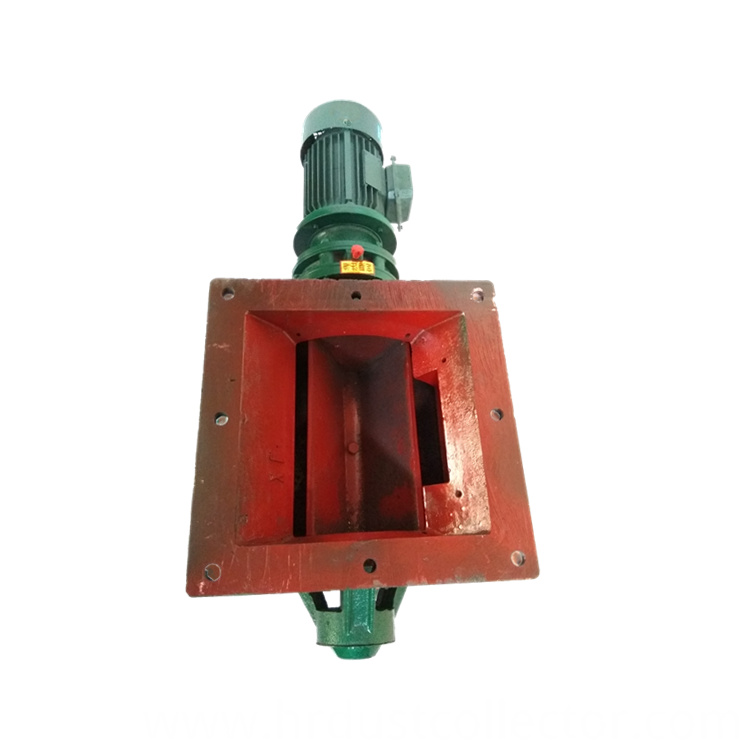

Star Type Unloader YJD-A

    Payment Type: L/C
    Incoterm: FOB,CIF
    Delivery Time: 15 Days
Basic Info

Model No.: Customized

Additional Info

Packaging: carton

Transportation: Ocean,Land

Port: Xingang China

Product Description
The unloader has high processing precision and gas locking function. It can be used for pulverizing and grading system, and can be used as a discharger for separation and dust collecting systems, or for pressure and suction pneumatic conveying systems.
2, with pressure balancing device, can be used in positive pressure and negative pressure conveying system.
3, the cast iron, cast steel, stainless steel, titanium steel and other materials can be used. The flange port can be a square or round structure to meet the different needs of users.
Hot pin rotary valve for industrial use
Working principle
First, the star type unloader is usually used in the pneumatic output system. For the pressure output system or the negative pressure output system, the star type discharger can supply the material continuously to the feeding tube. In order to ensure the gas and solid in the pneumatic output pipe, the gas and solid are stable, so that the pneumatic conveying can work normally. At the same time, the pressure of the upper and lower parts of the discharger can be separated to play the role of locking gas. Therefore, star type discharger is an important component in pneumatic conveying system.
Two. When the material in the upper silo is dropped by weight, it is filled in the gap between the blades and is discharged at the bottom with the rotation of the blades. Therefore, the star discharger can be discharged quantitatively and continuously.

Three, the star type discharger can be used in the material collection system as the unloading device of the bin. Star type unloader is the most advanced unloading device in China. It is often used as an important equipment in the dust removal system. It is especially suitable for dust, small particle material, and is well chosen for the engineering projects of environmental protection, metallurgy, chemical industry, grain, cement, road building, drying equipment and so on.

Electric YJD A star type ash relief valve

Four. The temperature of the material that it conveyed can reach 280 degrees C. There is a certain isolation between the bearing and the impeller at both ends, which can prevent the contact between the ultrafine powder and the bearing. The temperature of high temperature discharger conveyed material can reach 500 degrees C and connected by chain wheel. There is a certain distance between the reducer and the shell of the discharger.
The structure of star type discharger is composed of rotor impeller, shell, seal, reducer, motor and so on. The star type unloader is also called rotating feeder, lock valve, star type discharging valve, star type feeder, and wind regulator.

Looking for ideal Star Type Unloader YJD-B Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Star Type Discharger are quality guaranteed. We are China Origin Factory of Star Type Unloader. If you have any question, please feel free to contact us.
