Star type discharge - YCD-HG type

    Payment Type: L/C
    Incoterm: FOB,CIF
    Delivery Time: 15 Days
Basic Info

Model No.: Customized

Additional Info

Packaging: carton

Transportation: Ocean,Land

Port: Xingang China

Product Description

Star discharger is one of the important equipment of dust removal system. It is very important in selection and quality. The unloading device is widely applied to dry powder and small grain materials. As a special unloading equipment of the dust removal system, the star type unloader plays a great role in cleaning and cleaning, so it is necessary for us to understand the characteristics of the star type unloader in detail so as to reduce the loss caused by the error in the selection and operation.

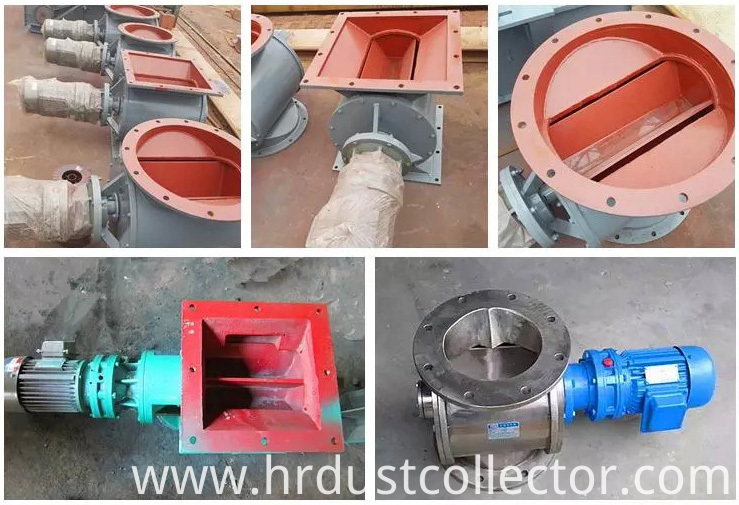

Silo flexible rotary pneumatic feeder

1, the star type discharger can be divided into the conventional type according to the flange connection port: the YJDA star type discharger (flange mouth is square) and the YJDB star type discharger (flange mouth is round). Various shapes of flange connections can also be customized according to different needs of customers. 2, according to the number of sealing layers: single, double, three layers. 3, according to the internal structure and uses: general, pressure resistant and high temperature resistant.

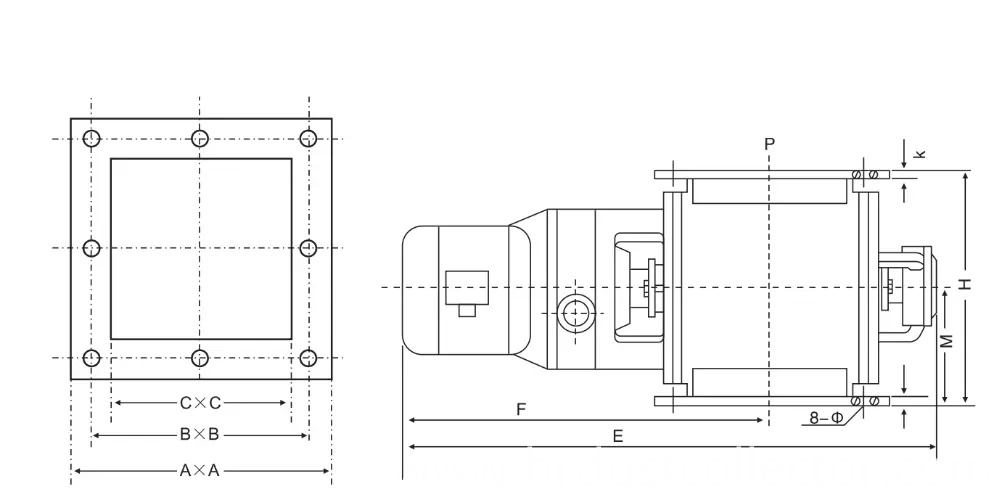

Square or round flanged impeller rotary valve

There are mainly two kinds of flange connection modes for star type disloaders. The square port is A type and the round port is B type. It can also customize rectangular and other special specifications of ash discharge valve according to customer requirements.
1, anti card star discharger: adopt anti jam feeding design, adjust clearance according to different media, and use bias type body, V type rotor when necessary.
2, pressure resistant star type discharger: the use of a closed rotor, widely used in suction, pressure pneumatic conveying system, effectively reduce gas leakage, ensure pneumatic transportation.
3, temperature resistant star type unloader: the use of external loading mechanism, the slurry running part of the box part of the contact with the material, can make bearings and oil seal system not affected by high temperature and normal work. This type of machine is also especially suitable for the transportation of metal powder and ultrafine powder, avoiding these materials invading the bearing and oil seal system.
4. Direct delivery star type unloader: use the up and down out mode to evenly blow the material in the rotating blade to the conveying pipe mouth and lock the gas seal at the same time.
5. Anti sticking star discharger: special design, which can normally transport materials that are easy to stick and easy to lump.
6, the quantitative star discharger: by controlling the rotor volume and speed to achieve the purpose of quantitative feeding.

Looking for ideal Star Type Unloader -YCD-HG Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Star Lock Wind Valve are quality guaranteed. We are China Origin Factory of Star - Type Wind Cooler. If you have any question, please feel free to contact us.
