The DSZ shaft humidifier is composed of the main body, the electric control cabinet, the main drive, the upper discharge machine, the spiral feeder, the multi column linear agitator, the vibrator and the multi tube spray device. The whole body is fixed on the seat made by the channel steel. The main barrel of the conveyer is supported by four groups of elastic elements, and is connected with the soft seal of the drive device of the frame. The vibration motor is installed on the top fixed seat of the main cylinder, and the vibration device is used to produce the synchronous amplitude oscillation in the main cylinder. The main engine deceleration device adopts the belt buffer and deceleration transmission mechanism to completely eliminate the phenomenon of stuffy cars and blocking up, reduce the time for cleaning down and improve the work efficiency. Two. Structure and principle:
The BDSZ series humidifier is made up of four parts: uniform feeding, blade conveying, mixing and beating, humidification and vibration system. It is equipped with electric control and water supply system. The whole body is fixed on a support, and the barrel is supported by four groups of elastic elements. Through the vibration excitation device, the cylinder body is vibrate at high frequency during the operation process, and the cylinder wall keeps a certain gap between the wall and the agitation shaft, which reduces the operation negative force, eliminates the boring machine and the current angle, reduces the time of the downtime and improves the working efficiency. Rate.
The mixing cylinder of the dust humidifier is fixed on the machine seat by the supporting frame on both sides, the feeding motor is fixed to the side of the hopper, the feed cylinder is located at the lower part of the feeder, the feed cylinder and the mixing cylinder are coaxial and interconnected, the main shaft is located in the mixing cylinder and the feed cylinder, and the main motor drives the spindle to rotate, it is in the feed cylinder. The main shaft of the shaft is fixed with a spiral pushing piece on the main shaft, the main shaft of the mixing cylinder is uniformly fixed and fixed with a stirring rod, a row of water intake is arranged evenly on the mixing barrel, the intake port is connected with the inlet pipe, and the upper end of the mixing cylinder is fixed with a vibrating motor, avoiding the uneven mixing of the humidifier and the uneasy occurrence of the fly ash binding. It has the characteristics of safe and reliable operation.

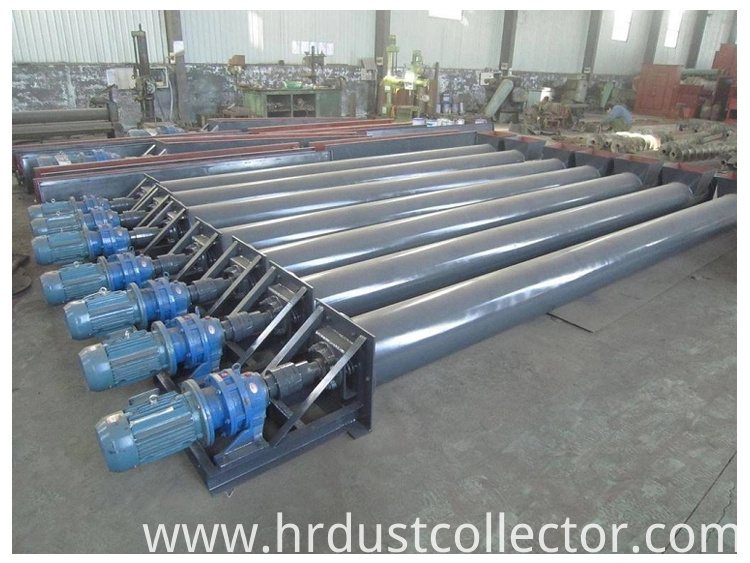

Looking for ideal Carbon Steel Shaft Free Conveyor Price Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Use of Shaft Free Conveyor are quality guaranteed. We are China Origin Factory of High Quality Carbon Steel Shaftless Conveyor. If you have any question, please feel free to contact us.
Product Categories : Dust Collector Fittings > Screw Conveyor
