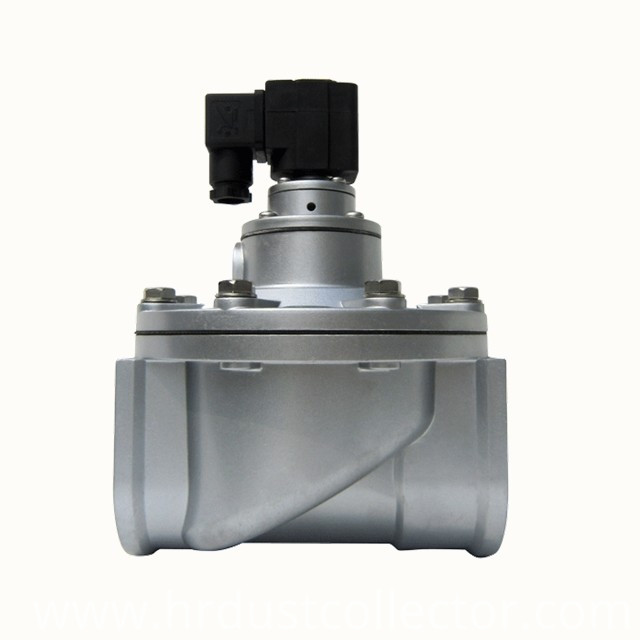

Pneumatic electromagnetic valve of pulse deduster

    Payment Type: L/C
    Incoterm: FOB,CIF
    Delivery Time: 15 Days
Basic Info

Model No.: Customized

Additional Info

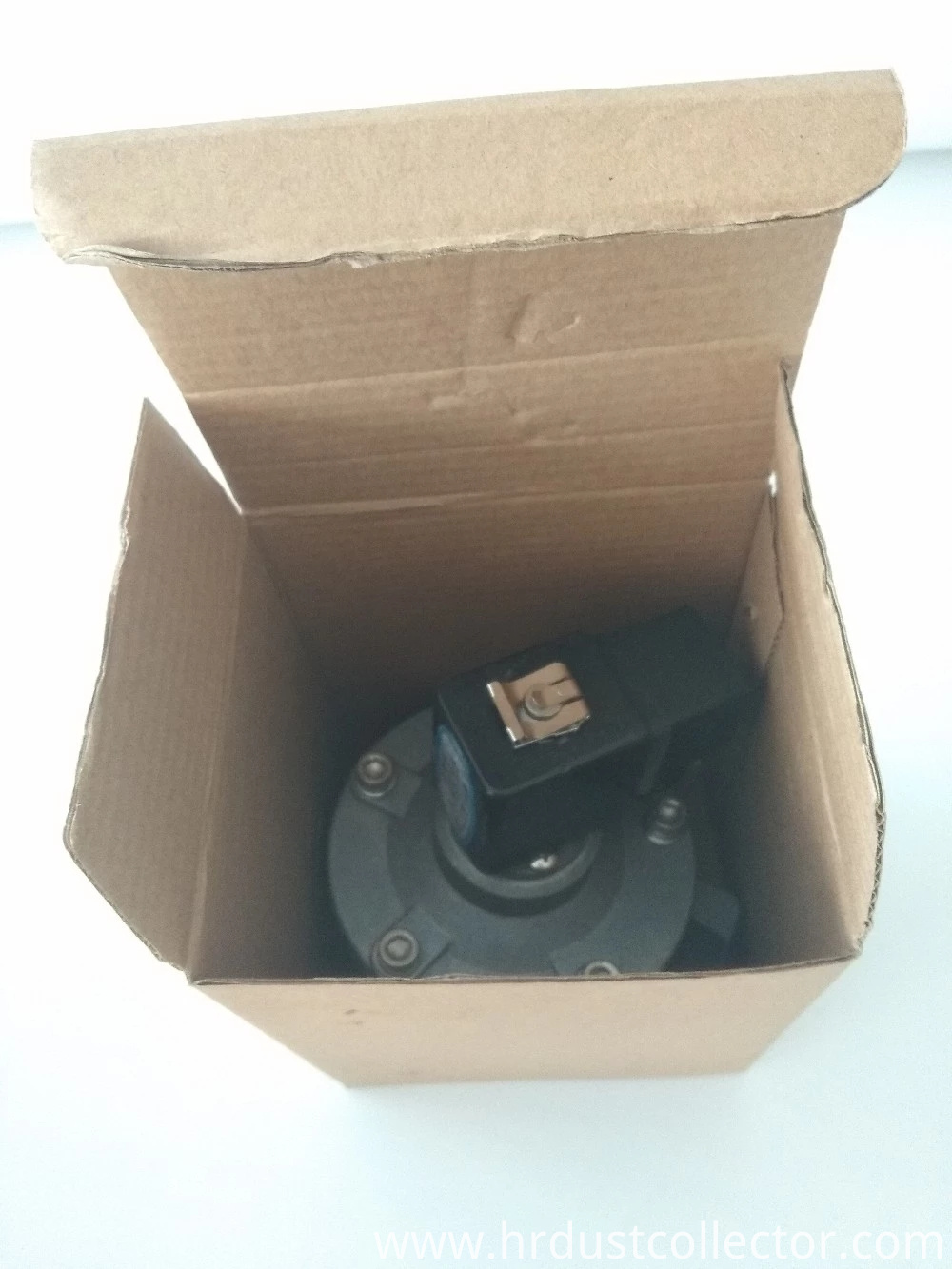

Packaging: carton

Transportation: Ocean,Land

Port: Xingang China

Product Description

The Electromagnetic Pulse Valve produced by our factory is cost-effective and can be used in all kinds of bad environment for a long time. It is a necessary accessory for the work of the dust collector. We welcome the use of high quality pulse solenoid valve.

The technical parameters of the electromagnetic pulse valve:
Work pressure: 0.2-0.6MPa
Working medium: clean air
Working voltage: DC24V, AC220V
Working current: 800mA/60mA
Environment: temperature -10 degree to 65 degrees
Service life: 2-3 or 1 million times

The relative humidity of the air is not more than 85%

DMF - Y-62S immersion electromagnetic pulse valve

The right angle electromagnetic pulse valve, the submerged electromagnetic pulse valve, the direct pass electromagnetic pulse valve and the speed continuous electromagnetic pulse valve are suitable for the cleaning of various pulse bag type dust remover. It can keep the air flow of the dust collector and keep the resistance of the dust collector within the set range, so as to guarantee the handling capacity and the dust collecting efficiency of the dust collector.

Working conditions:

When the electromagnetic pulse valve is used, the environmental conditions are very important, which is related to the normal and smooth operation of the electromagnetic pulse valve. The environment conditions of the electromagnetic pulse valve:
1, according to the type of power supply, AC and DC solenoid valves are selected respectively. Generally speaking, AC power supply is convenient to use.

2, in corrosive or explosive environments, corrosion resistance should be preferred according to safety requirements.

Submerged electromagnetic pulse valve

3, if the environment space is restricted, please use the multi-function solenoid valve, because it eliminates bypass and three manual valves and is convenient for online maintenance.
4, the power supply voltage fluctuations usually AC +%10%.-15%, DC tolerance of about%10, if ultra poor, must take measures to stabilize or put special order requirements.
5, the highest and minimum temperature of the environment should be selected within the allowable range. If there is excess deviation, special orders should be put forward.
6, the power condition of the electromagnetic pulse valve
7, special occasions such as vibration, bump and impact should be selected in the environment, such as marine solenoid valves.
8, voltage specifications are preferred to AC220V.DC24V.
9, in the environment where relative humidity is high and water droplets are dripping, we should choose waterproof solenoid valves.
10, the rated current and power consumption should be selected according to the power supply capacity. Attention should be paid to the higher VA value when AC starting, and the indirect guided solenoid valve should be preferred when the capacity is insufficient.

Looking for ideal Air Compressor 3 Inch Solenoid Valve Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Dust Filter Pulse Valve are quality guaranteed. We are China Origin Factory of Solenoid Valve Pneumatic Diaphragm Valve. If you have any question, please feel free to contact us.
